IO-Link Device Tool | IO-Linkデバイス デモンストレーション テストツール キット

IO-Linkデバイスの設定や診断を支援するツール
世界標準の通信テクノロジ「IO-Link」デバイスの、サービス・販売のためのデモンストレーション、およびデバイスの開発やテスト・エンジニアリングのためのツールキット。
IO-Linkデバイスとの通信のためのUSB IO-Link Master(ハードウェア)と IO-Linkエンジニアリングツールがセットになっています。

主な用途
- IO-Linkデバイスの設定
- 診断機能の利用
- パラメータの操作
- データログの取得
- ファームウェアのアップデート

またCや.NETの独自ソフトウェアでUSB IOLink Masterを使うためのライブラリも提供されています。

製品の種類
Communication Software: IO-Linkや各種産業用イーサネット規格の通信スタックを提供
IO-Link Device Tool: IO-Linkデバイスの設定や診断を支援するソフトウェアツール
Test systems: IO-Linkのデバイスコンフォーマンステストなど



メーカー
TMG Technologie und Engineering GmbH
https://www.tmgte.de/en/

IO-Link Device Tool | IO-Linkデバイス デモンストレーション テストツール キットの取り扱い商品の一例

商品名 納品方法 納期 価格
TMG IO-Link Device Tool - SE (Standard Edition) 弊社より配送 在庫あり、即納です お問い合わせください
TMG IO-Link Device Tool - PE (Professional Edition) 弊社より配送 お問い合わせください お問い合わせください
TMG IO-Link Device Tool - Test System 弊社より配送 お問い合わせください お問い合わせください
TMG IO-Link 製品 (ご希望の製品名をお知らせください) 弊社より配送 お問い合わせください お問い合わせください

今すぐお見積り

ご希望の商品にチェックを入れてボタンをクリックすることで、該当商品をお見積もりフォームへ追加できます。納品方法についてはこちらをご覧ください。

IO-Link Device Tool | IO-Linkデバイス デモンストレーション テストツール キットの商品説明

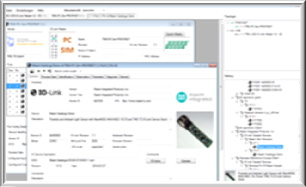

IO-Link Device Tool

IO-Linkデバイスの基本的な設定と診断が可能なStandard Edition(SE)と、
開発現場での利用に対応し、高度な機能が加わったProfessional Edition(PE)
2つのエディションがあります。


IO-Link Device Tool - Standard Edition / 詳細ページ

IO-Linkデバイス サービス・販売のためのエディション。
IO-Linkデバイスのデモンストレーションや事前のパラメータ化などに利用できます。

製品の構成
- PC software: TMG IO-Link Device Tool Version 5.1 - SE (ダウンロード版)

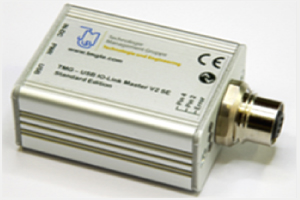

- TMG USB IO-Link Master V2 SE
- Plug-in power supply 115/230V - 24V (1A) with international adapters
- USB A to USB Mini cable (length: 1m)
- Quick Reference Guide

TMG IO-Link Device Tool - SEの主な仕様
・IO-Linkデバイスの設定、監視、診断が可能
・IODD V1.0.1、V1.1に対応
・IO-Link V1.1.3およびIODD V1.1.3に準拠
・オンライン/オフラインのプロジェクト計画が可能
・パラメータ、メニュー設定、スコープ表示の拡大縮小などプロジェクトの保存が可能

TMG IO-Link Device Tool - SEの対応マスター
- IO-Link V1.0、V1.1デバイスに対応
- 保護等級III(operation on safety extra-low voltage)
- USB(MiniUSB B, TYP 2.0) / M12コネクタ接続
- 24V電源またはUSB給電
- サイズ with/without M12: L70/55 x H24 x W40 (mm)

TMG IO-Link Device Tool - SEのシステム要件
- Windows 10 (64bit)
- .NET Framework 4.6.1
- 画面解像度: 1024 x 768 px 以上
- USB 1.1, 2.0 or 3.0 interface

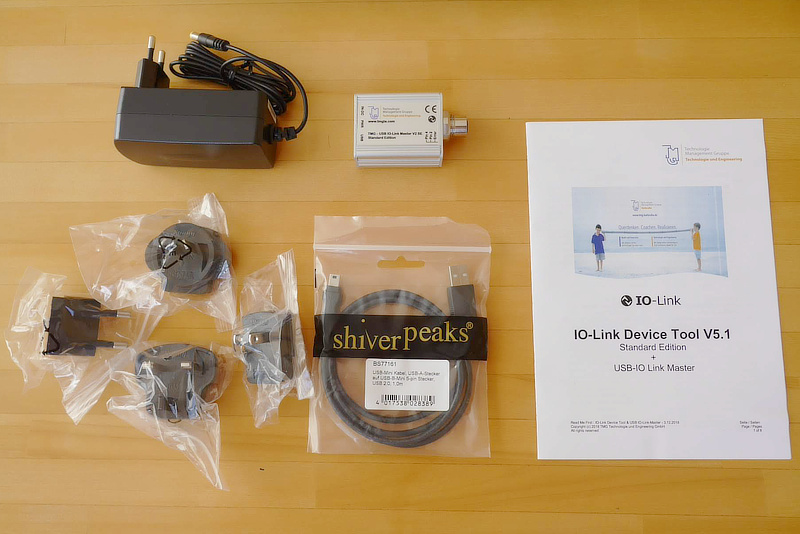

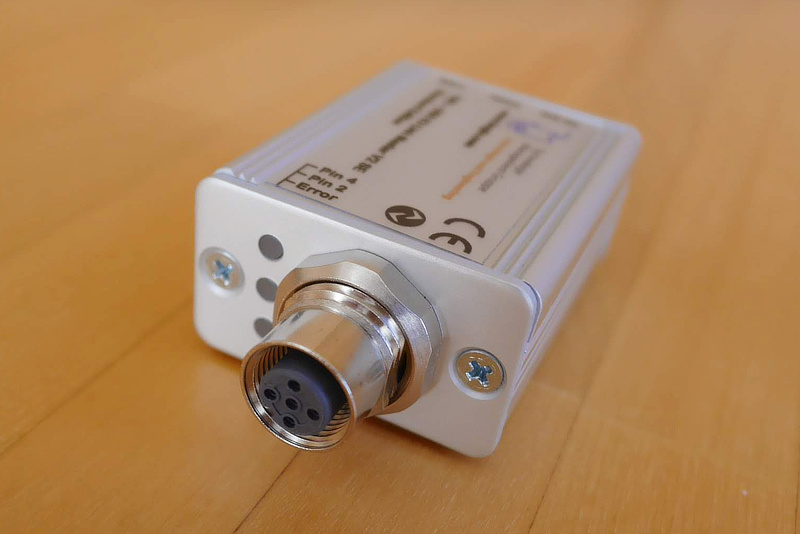

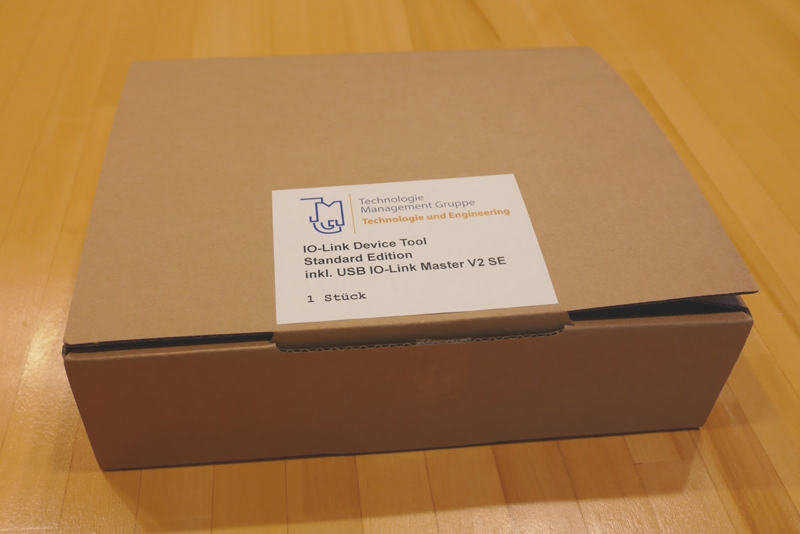

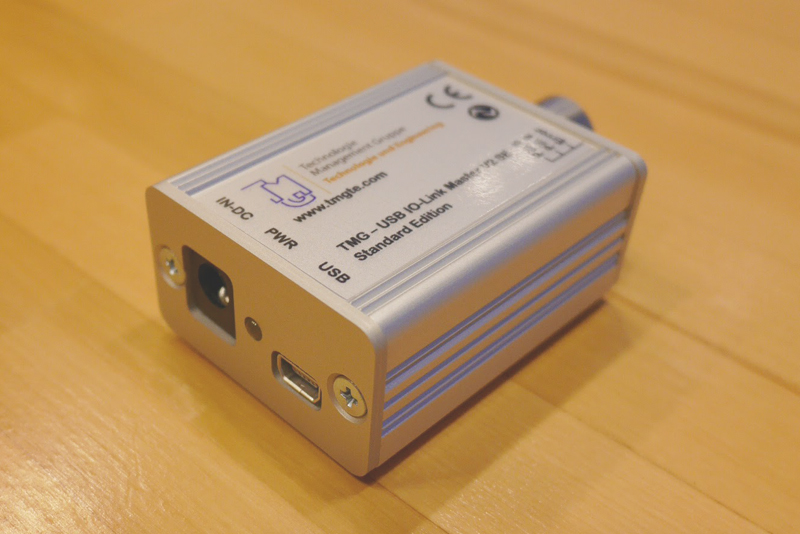

Standard Edition 写真 ※画像クリックで拡大します




IO-Link Device Tool - Professional Edition / 詳細ページ

IO-Linkデバイス開発のためのエディション。さまざまなメーカーのIO-Linkマスターをサポートし、
テレグラム解析やスコープ表示など、開発効率の向上に役立つ優れた機能が含まれています。

製品の構成
- PC software: TMG IO-Link Device Tool Version 5.1 - PE (ダウンロード版)
- TMG USB IO-Link Master V2 SE
- Plug-in power supply 115/230V - 24V (1A) with international adapters
- Manual(PDF)

TMG IO-Link Device Tool - PEの主な仕様
・IO-Linkデバイスの設定、監視、診断が可能
・IODD V1.0.1、V1.1に対応
・IO-Link V1.1.3およびIODD V1.1.3に準拠
・各種通信ドライバに対応(PROFINET、PROFIBUS、TCP/IP等)

TMG IO-Link Device Tool - PEのシステム要件
- Windows 10 (64bit)
- .NET Framework 4.6.1
- 画面解像度: 1024 x 768px 以上
- USB 1.1, 2.0 or 3.0 interface / Ethernet network interface

※IO-Link Device Tool V5.1-SE の機能の全て備えています



Test systems

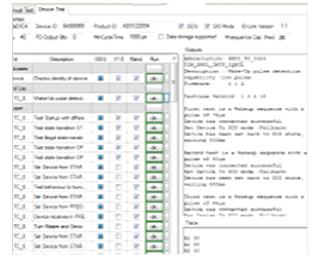

IO-Link Device Tool - Test System / 詳細ページ

IO-Linkデバイスの開発とテストを目的としたテストシステム(TMG USB IO-Link Master V2 TS を含む)

TMG IO-Link Device Tool - TSの主な仕様
・IO-Linkのプロトコルテストケースの実行が可能
・最新のIO-Linkテスト仕様に準拠
・IO-Linkデバイスの設定、監視、診断が可能
・IODD V1.0.1、V1.1、V1.1.3に対応

デバイス開発者向けの機能
- インデックス/サブインデックスによるパラメータアクセス
- テレグラムトレース

IO-Link Device Tool - Test Systemのシステム要件
- Windows 10 (64bit)
- .NET Framework 4.6.1
- 画面解像度: 1024 x 768以上
- USB、イーサネットインターフェース

--------------------------------------------------------------


■ その他の製品

TMG USB IO-Link Master V2 - EMC (ハードウェア単体) / 詳細ページ
IO-Link test specificationに準拠した、IO-Linkデバイスの通信のEMCテストのためのツール。
テストはPC無しで実行され、IO-LinkデバイスのApplication Specific Tagを使用して設定されます。
上記IO-Link Device Tool - Standard Edition に付属するTMG USB IO-Link Master V2-SEと
同様の機能をもっており、TMG IO-Link Device Tool V5.1(ソフトウェア)と共に利用することも可能です。

【製品仕様】
・TMG USB IO-Link Master V2 - EMC
- The USB IO-Link Master V2 EMC has to be powered with a standard USB power supply (not included) and additionally with the included 24V external power supply.
- Mini USB cable included
- Plug power pack 115/230V - 24V (1A) with international adapters
- Pin 2 can be used as Signal/Trigger-output for indication of errors with a lamp, a buzzer or connected to a test monitoring device. (Signal transmitter not included)

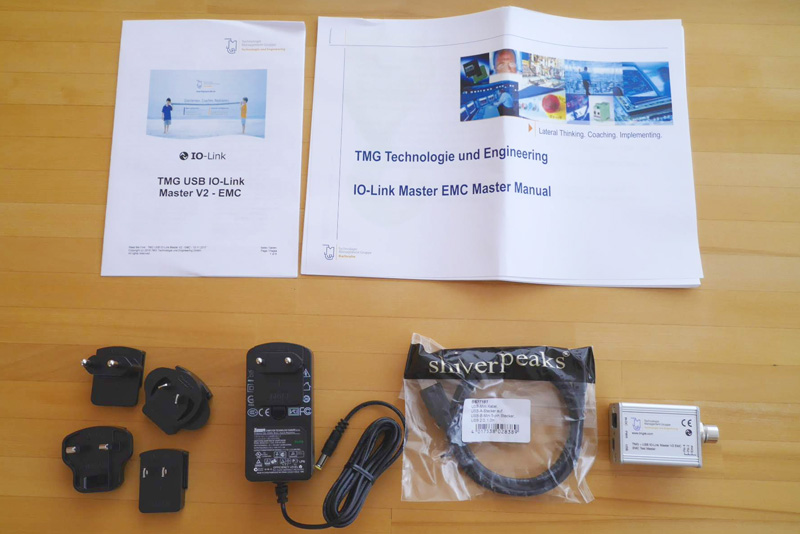

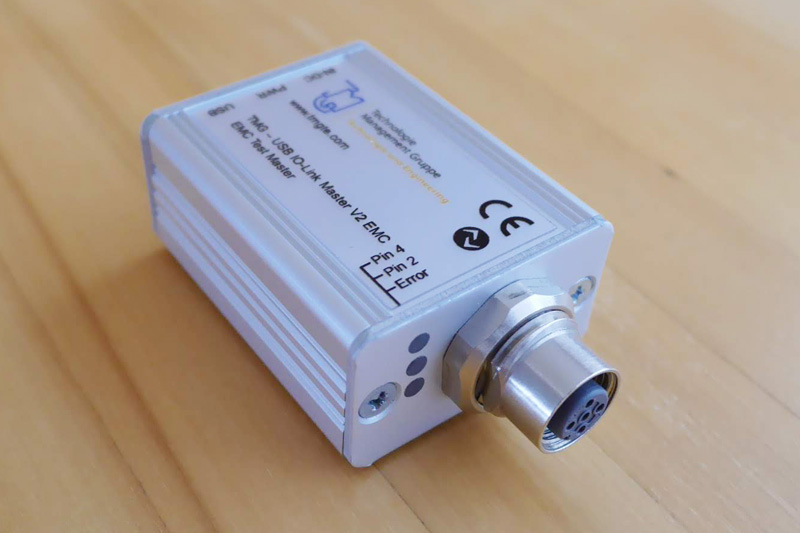

TMG USB IO-Link Master V2 - EMC 写真 ※画像クリックで拡大します






IO-Link Device Tool V5.1 - Professional Edition (ソフトウェア単体) / 詳細ページ
IO-Linkマスタの設定とIO-Linkデバイスの操作を行うための統合エンジニアリングソフトウェア。

【製品仕様】
・IODD V1.0.1 und V1.1
・Available communication interfaces
- UDP for PROFINET, EtherNet/IP and Standard Ethernet
- USB
- TCI Communication Server for PROFINET and PROFIBUS
・Windows 7, 8.1 and 10 32 and 64 Bit
・Main functions
- Project management
- Port configuration of IO-Link masters
- Operation of IO-Link Devices via IODD
- Operation of IO-Link Devices via Open IO Device GUI
- Operation of IO-Link Devices even without IODD
- IO-Link Device Firmware Update
- IODDFinder
- IODD Viewer
- Online and Offline Engineering


Windows DLL for USB IO-Link Master V2 / 詳細ページ
Cや.NETの独自ソフトウェアでUSB IOLink Masterを使うためのダイナミックリンクライブラリ。

【製品仕様】
・C DLL including header files, documentation and sample project (Visual Studio C)
・.NET (adapter) DLL with documentation and sample projects in VB.NET and C#
・Functionality: Port Configuration, Process Data, Parameter (Index, Subindex), Events





IO-Link Device Stack / 詳細ページ
IO-Linkデバイス用のプロトコルソフトウェア。
IO-Link V1.1仕様に完全に準拠しており、V1.0に対しても後方互換性をもっています。

【製品仕様】
・Compliant with IO-Link specification V1.1.3
・Created in ANSI-C 99
・Supports all IO-Link functionality
・Backward compatibility for operation on V1.0 masters
・Device compatibility (support of multiple device IDs in one device)
・Consistent separation of protocol stack and hardware adaptation
・Consistent process data exchange through alternating buffers
・Synchronization of the device software to the process data or communication cycle possible
・Simple adaptation to the specific application in each case using a configuration file
・Does not require an operating system



その他のTMG Technologie und Engineering社の製品につきましてはお問い合わせください。
