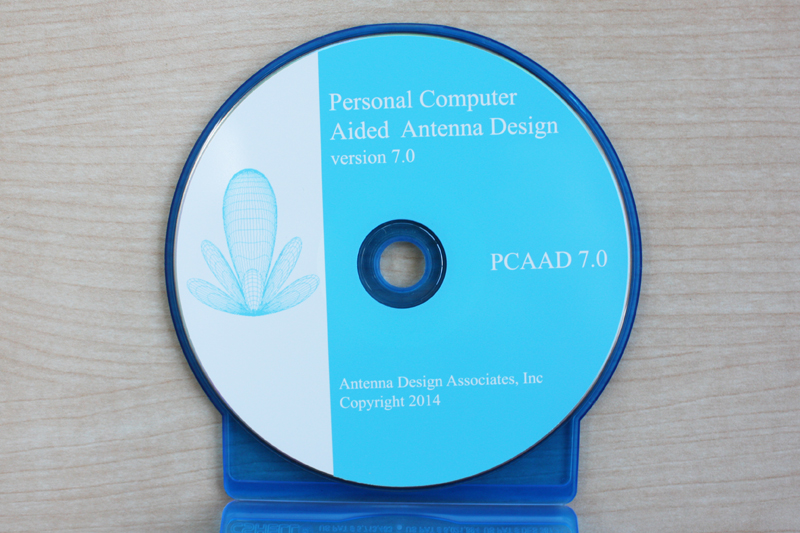

PCAAD (Personal Computer Aided Antenna Design)
- アンテナ解析・設計ソフトウェア
- アンテナの解析、モデリング、設計のためのソフトウェアパッケージ(Windows専用ソフト)。
50以上のワイヤアンテナ、開口面アンテナ、マイクロストリップアンテナ、アレイアンテナ、伝送線、導波管などの取り扱いのルーチンが含まれています。
- メーカー
- Antenna Design Associates, Inc.
http://antennadesignassociates.com/
取り扱い商品の一例
商品名 | 納品方法 | 納期 | 価格 | |
---|---|---|---|---|
PCAAD 7.0 for Windows | 弊社より配送 | お問い合わせください | お問い合わせください |
ご希望の商品にチェックを入れてボタンをクリックすることで、該当商品をお見積もりフォームへ追加できます。納品方法についてはこちらをご覧ください。
商品説明
最新バージョンは PCAAD Version 7.0 です。
以下のような新機能が含まれています。

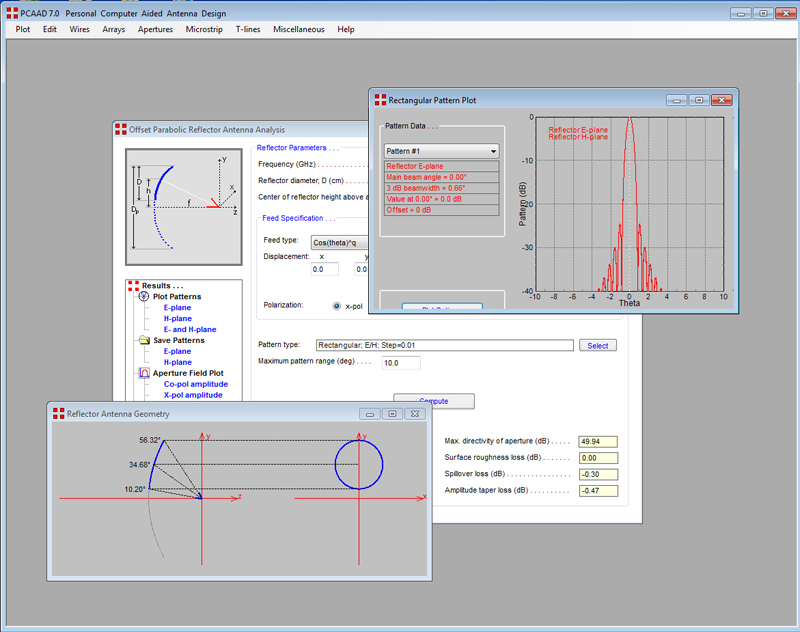

・Analysis of symmetric and offset parabolic reflector antennas
・Analysis of spherical reflector antennas
・Viewing of amplitude and phase distributions for reflectors
・Modeling of horizontal and vertical dipole over a ground plane
・Full-wave analysis of multilayer stripline
・Full-wave analysis of multilayer microstrip line
・Full-wave analysis of surface waves on a multilayer substrate
・Analysis of coupled striplines and couple microstrip lines
・Calculation of antenna beam efficiency
・Polar and rectangular pattern plots with up to five patterns
・Smith chart plots with up to five plots
・3-D pattern plots are faster, and have an optional cross-section view
・Tutorials on transmission lines, the Smith chart, and small antennas
・Improved graphics, error checking, and Help

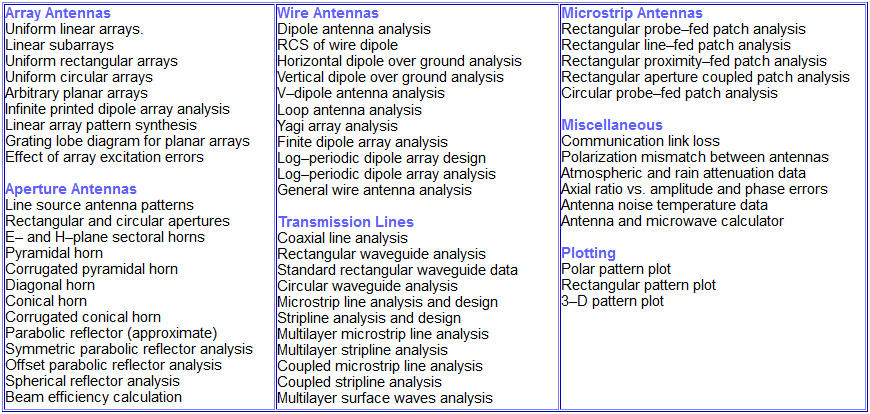

【各アンテナに対する解析・設計機能の一覧】 ※画像クリックで拡大します
【パッケージ内容】

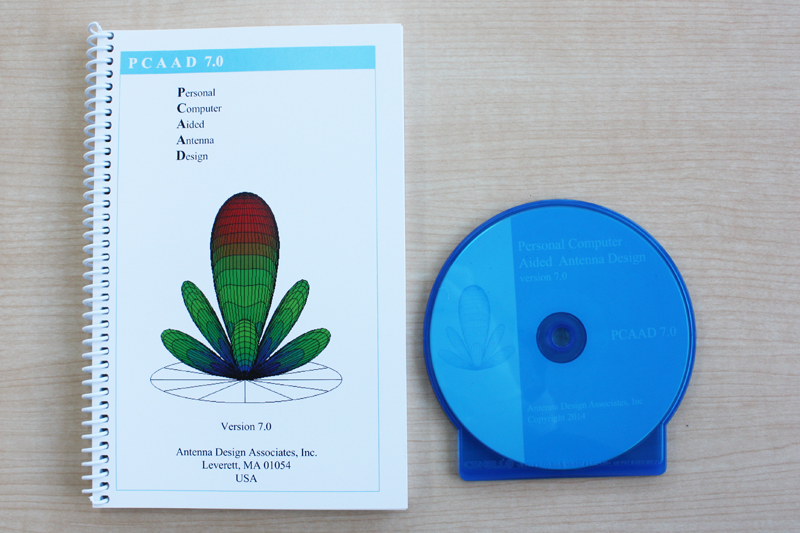

・ソフトウェアCD
・ユーザーマニュアル (120ページ)
・PCAADはWindows XP以降のバージョンに対応しています。
・PCAAD 7.0 for Windowsはシングルユーザーライセンスです。
・サイトライセンスにつきましては別途お問い合わせください。
