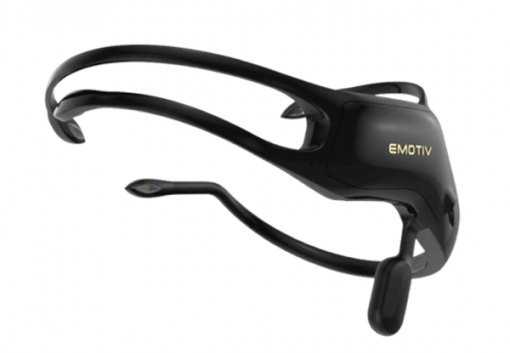

EMOTIV Insight 2.0
- 脳波(EEG)解析ワイヤレスヘッドセット
- ブレインコンピュータインタフェース(BCI)向けの5チャンネルEEGワイヤレスヘッドセット。
導電性ゲルや生理食塩水がなくてもそのまま装着可能なセミドライポリマータイプのセンサを採用しており、日常生活の中での利用を想定し設計されています。
メンタルコマンド、感情状態、表情などの検出の他、Raw EEGデータの取得(※)も可能です。
※ソフトウェアEmotivPRO のご購入が必要です。
新モデルがリリースされました (2022年1月発売)
・通信の接続性が向上 および Bluetooth 5に対応
・バッテリー駆動時間も最大20時間

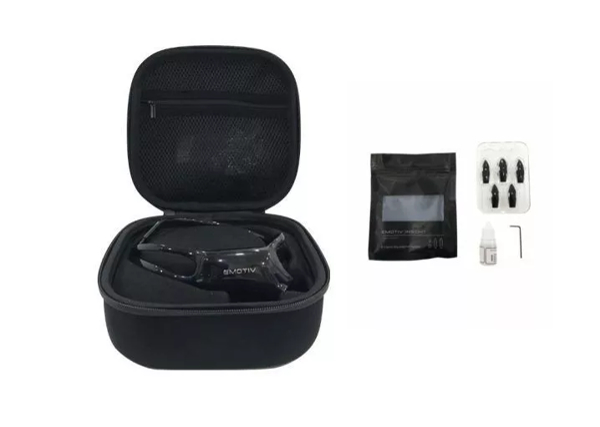

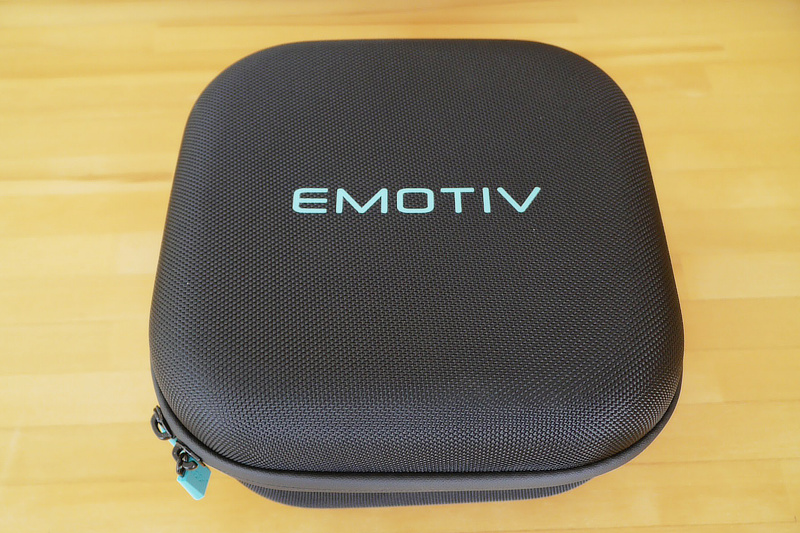

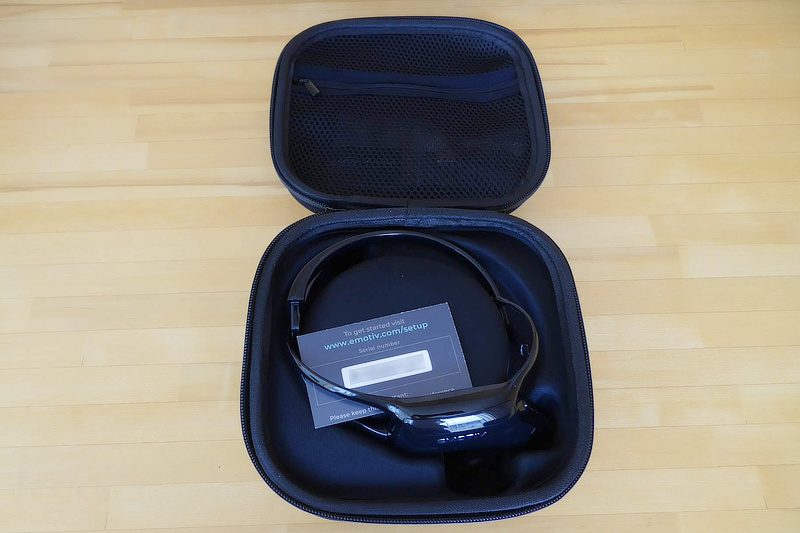

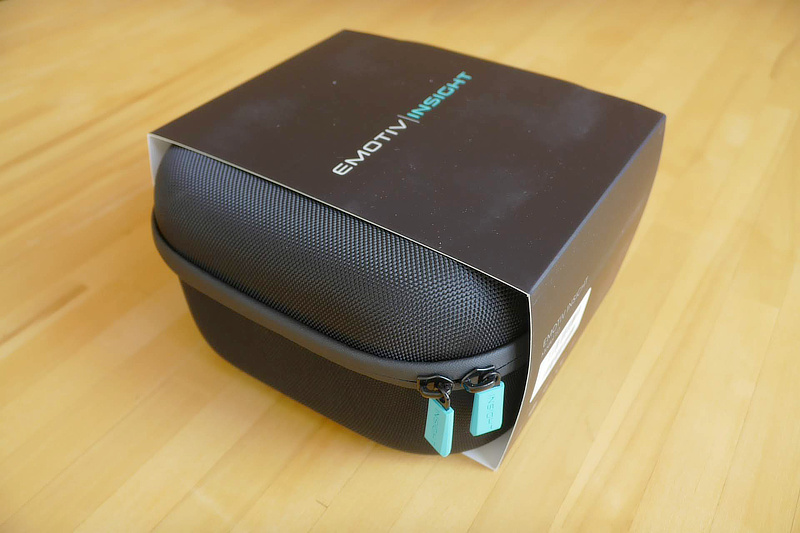

・保護用キャリングケース付属
※Bluetooth接続のみ(USBレシーバーがなくなりました)
EMOTIV 脳波計測デバイスシリーズ:

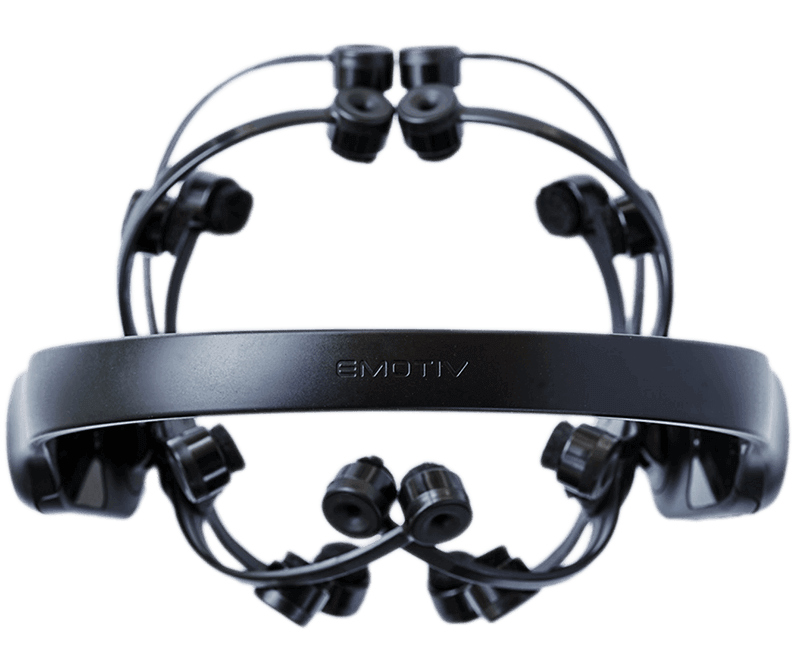

EMOTIV EPOC X (14ch)のページはこちら

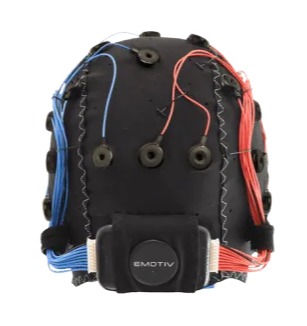

EMOTIV EPOC Flex (最大32ch)のページはこちら
人気の商品カテゴリ:EEG(脳波)測定 関連製品
検索キーワード:EMOTIV Insight 5 Channel Mobile Brainwear
- メーカー
- Emotiv Systems
https://www.emotiv.com/insight/
取り扱い商品の一例
商品名 | 納品方法 | 納期 | 価格 | |
---|---|---|---|---|
EMOTIV Insight 2.0 | 弊社より配送 | 在庫あり、即納です | お問い合わせください | |
EMOTIV Extender | 弊社より配送 | お問い合わせください | お問い合わせください | |
EmotivPRO(ソフトウェア) | 電子デリバリー | お問い合わせください | お問い合わせください |
ご希望の商品にチェックを入れてボタンをクリックすることで、該当商品をお見積もりフォームへ追加できます。納品方法についてはこちらをご覧ください。
商品説明

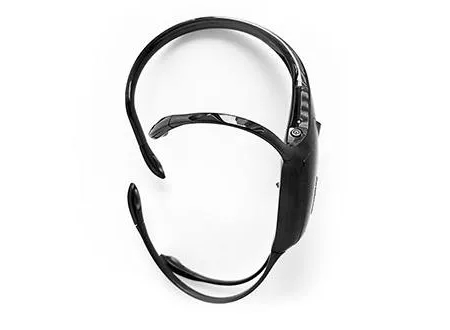

・EMOTIV Insight 2.0 NEW! (2022年1月リリース)
【EMOTIV Insight 2.0 仕様】
EEG sensors:
・5 channels : AF3, AF4, T7, T8, Pz
・2 references : CMS/DRL references on left mastoid process
・New three prong gummy sensor : for better hair penetration on Pz
・Sensor material: Hydrophilic semi-dry polymer
Connectivity:
・Wireless : Bluetooth Low Energy
- Improved radio connectivity, updated antenna with Bluetooth 5 support.
EEG signals:
・Sampling rate : 128 samples per second per channel
・Resolutio n: 16 bits with 1 LSB = 0.1275μV
・Frequency response : 0.5-43Hz, digital notch filters at 50Hz and 60Hz
・Filtering : Built in digital 5th order Sinc filter
・Dynamic range (input referred) : 8400 μV(pp)
・Coupling mode : AC coupled
Motion sensors:
・IMU part: ICM-20948
・Accelerometer: 3-axis +/-8g
・Gyroscope: 3-axis +/-2000 dps (converted to 4 normalised quaternions)
・Magnetometer: 3-axis +/- 12 gauss
・Sampling rate: 32 Hz
・Resolution: 16 bits
Power:
・Battery : Internal Lithium Polymer battery 480mAh
・Battery life : Improve battery life up to 20hrs on a single charge.
Detections:
・Mental commands: neutral + up to 4 pretrained items per training profile
・Performance metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus
・Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench

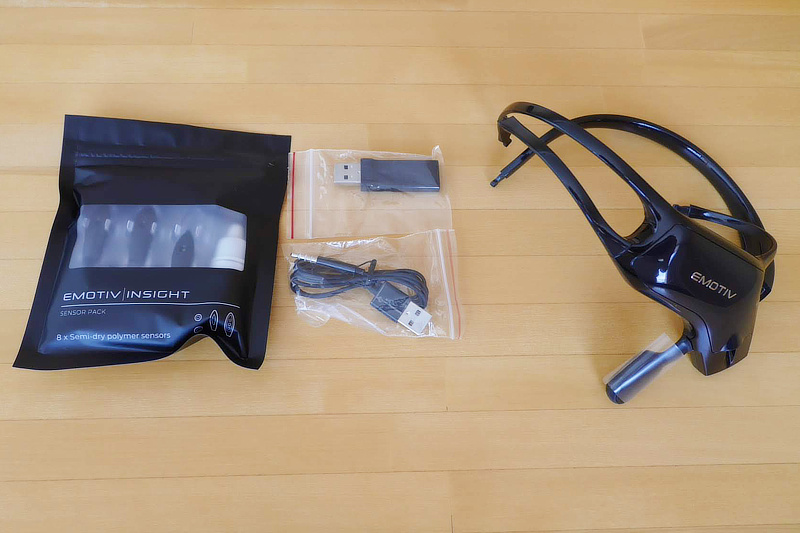

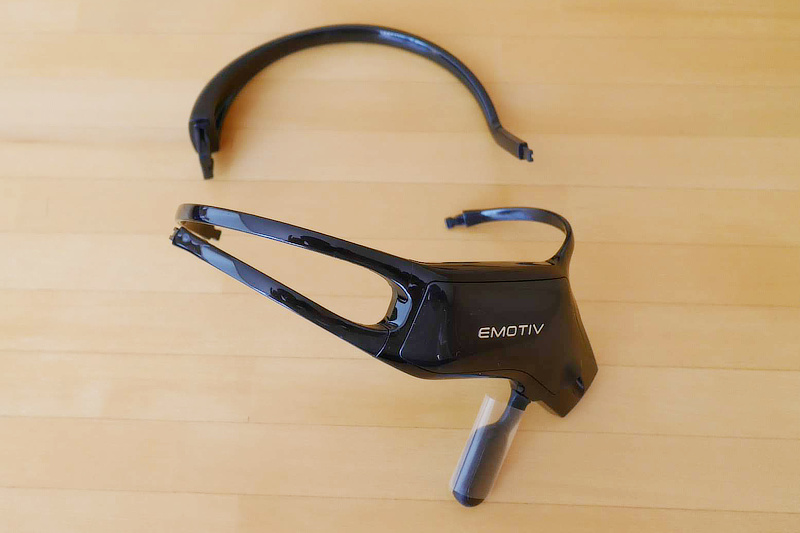

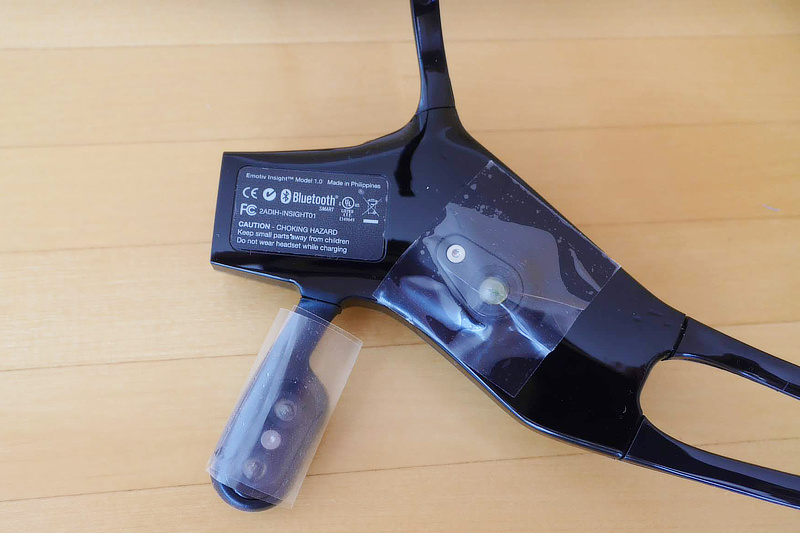

【旧モデル EMOTIV Insight 外観写真】 ※クリックで拡大します
-----------------------------------------------

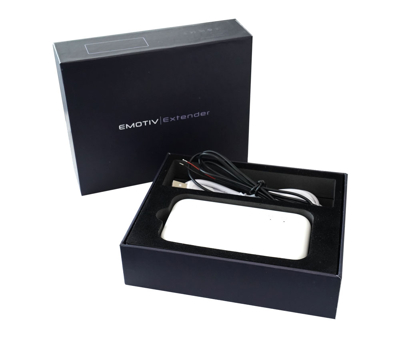

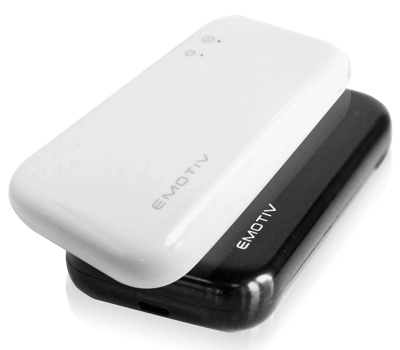

EMOTIV Extender - ニューロヘッドセットリサーチアクセサリー - / 詳細
EPOC+、Flex および Insight のモビリティとマーカーの精度をさらに高められる
外部ストレージ用のmicroSDカードを備えた絶縁型外部充電式バッテリーです。
ワイヤレス通信時のバッテリー消費を抑えるように設計されているため、
特に、消費電力の大きい256Hz/128Hzモーションデータを使用する際に便利です。
場所を選ばず、長時間に渡って EEGデータをオフラインで記録、保存ができます*。
* ソフトウェアEmotivPRO のご購入が必要です
【EMOTIV Extender 概要】
Specification:
・Connectivity: PC(USB-Mini B) / Headset(USB-A)
・Insulation: 2.5kV
・Trigger Input: Opto-isolated >2.5V pulse
・Trigger Minimum pulse: 100us
・Trigger Edge: Rising
・Battery Capacity.: LiPo battery 1850mAh
・Battery life (standby) 70% full :1 year
・Battery life (SD mode): 10 hours
・Battery life (tethered): Unlimited
・Battery life (Power Only): 7 hours
・Charging Time (1A): 2 hours
・SD Card Format: FAT32
・SD Card Max Capacity: 32GB
・SD Card use: 8KB/s

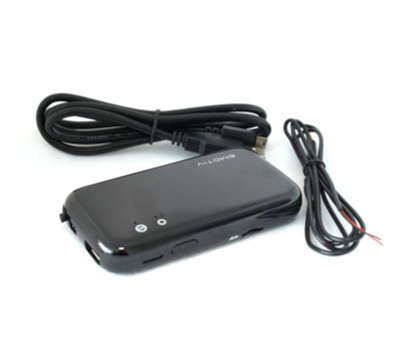

What's in the box:
・Extender
・micro USB cable
・Trigger Cable
Technical Spec:
・External battery pack for extended headset use
・2.5kV electrical isolation allowing direct USB data and power connection
・Built-in SD card *
* Micro SDカードは含まれておりません。別途ご用意ください。
Operating Modes:
・Charge Extender from USB port
・Charge EPOC+/Insight from PC or power pack during use via the isolated 5V power circuit
・Direct USB connection to PC via isolated 5V power and USB data links
・Operate EPOC+/Insight for extended periods using charge from Extender battery
・Record data directly to removable SD card during use
・Insert hardware-generated event marker flags directly into EEG data stream using 2.5kV-isolated optocoupler port
Compatibility:
・EPOC+/Insight. Not compatible with original EPOC model
・Windows or Mac Operating Systems for data download
Color:(選択してください)
・Classic White
・Stealth Black

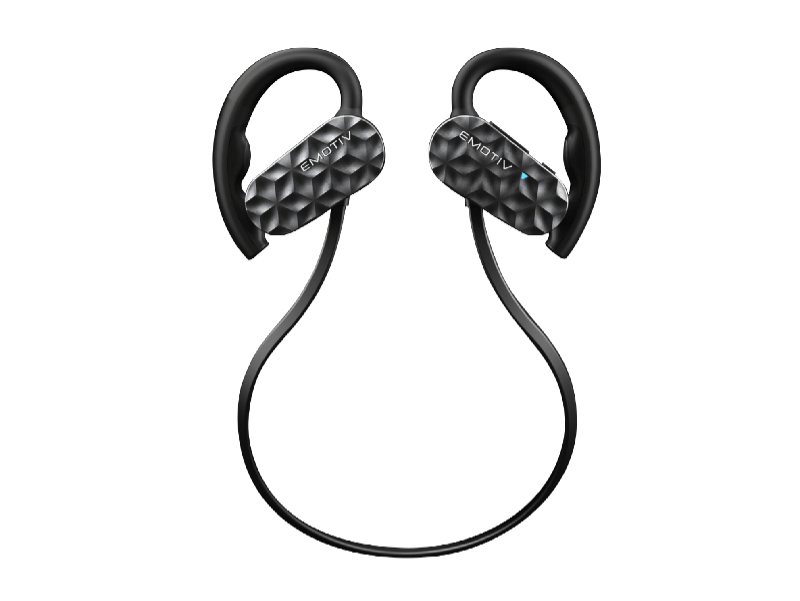

EMOTIV 脳波計測デバイス4種 (Insight / EPOC+ / EPOC Flex / MN8) メーカーWEB比較表ページ
※raw EEGデータ取得のためには ソフトウェア EmotivPRO のご購入が必要です。

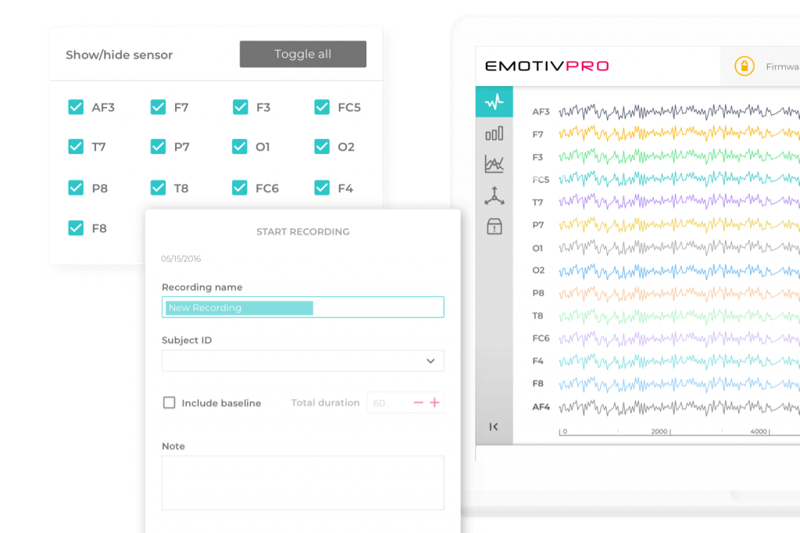

EmotivPRO (ソフトウェア)のページはこちら
