EMOTIV EPOC Flex

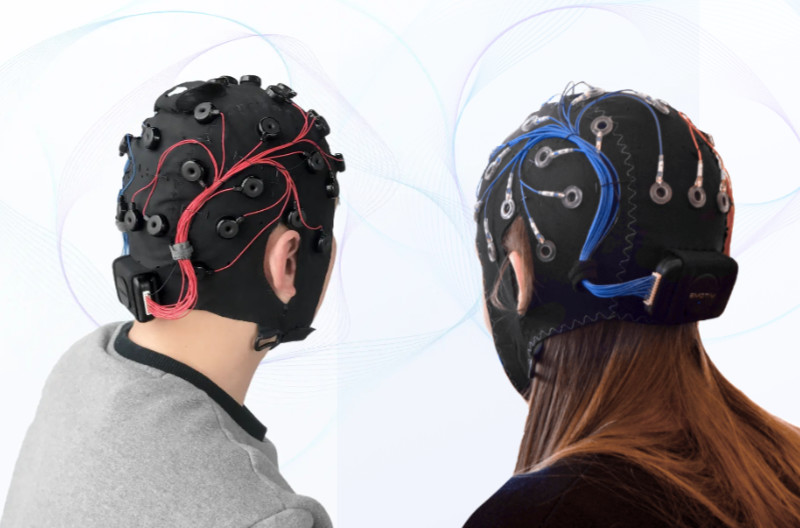

キャップタイプのワイヤレスEEG(脳波)システム
Emotiv Systems製の脳波キャップ。最大32チャンネルに対応しており、センサー位置はフレキシブルに変更が可能です。

raw EEGデータと周波数帯域データの取得が可能で、 高解像度の脳波データをPCへとワイヤレスで送信することができます(Emotiv PROライセンスが必要となります)。

最大9時間の長時間バッテリー駆動を実現しており、またキャップサイズを3種類から選ぶことができますので、お問い合わせの際にはご希望のサイズをお知らせください。

検索キーワード:
Emotiv extender / ニューロヘッドセットリサーチ


EMOTIV 脳波計測デバイスシリーズ:
EMOTIV Insight (5ch)ページはこちら

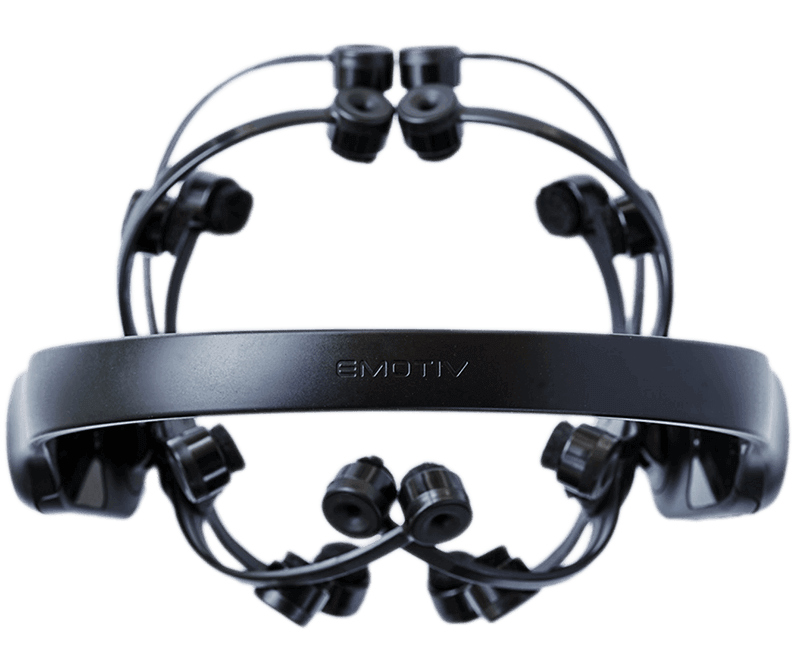

EMOTIV EPOC X (14ch)のページはこちら


人気の商品カテゴリ:EEG(脳波)測定 関連製品



メーカー認定リセラー
メーカー
Emotiv Systems
https://www.emotiv.com/epoc-flex/

取り扱い商品の一例

商品名 納品方法 納期 価格
EMOTIV EPOC Flex - Saline Sensor Kit 弊社より配送 お問い合わせください お問い合わせください
EMOTIV EPOC Flex - Gel Sensor Kit 弊社より配送 お問い合わせください お問い合わせください
EMOTIV Extender 弊社より配送 お問い合わせください お問い合わせください

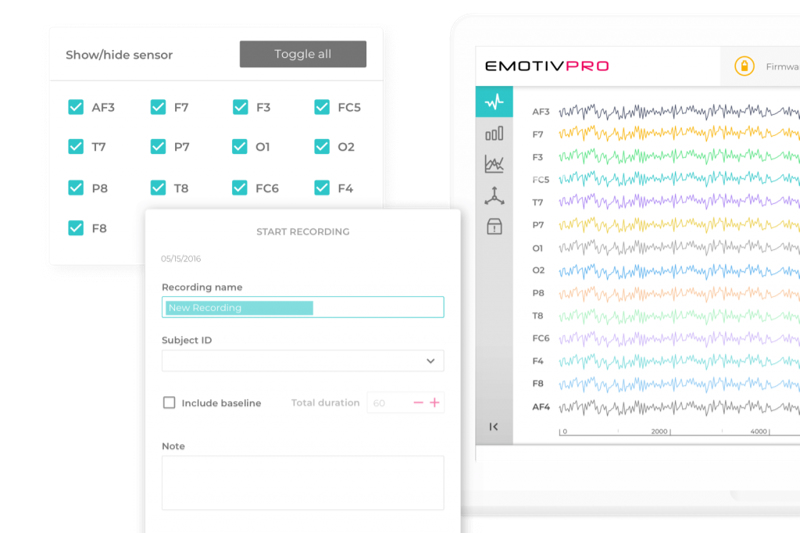

EmotivPRO(ソフトウェア) 電子デリバリー お問い合わせください お問い合わせください

今すぐお見積り

ご希望の商品にチェックを入れてボタンをクリックすることで、該当商品をお見積もりフォームへ追加できます。納品方法についてはこちらをご覧ください。

商品説明


【取り扱い製品】

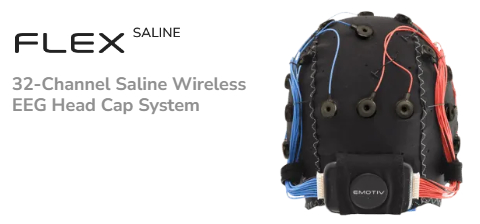

EMOTIV EPOC Flex - Saline Sensor Kit / メーカー詳細ページ
- EPOC+ 及び EPOC X と同様に生理食塩水を使用するフェルトセンサタイプ

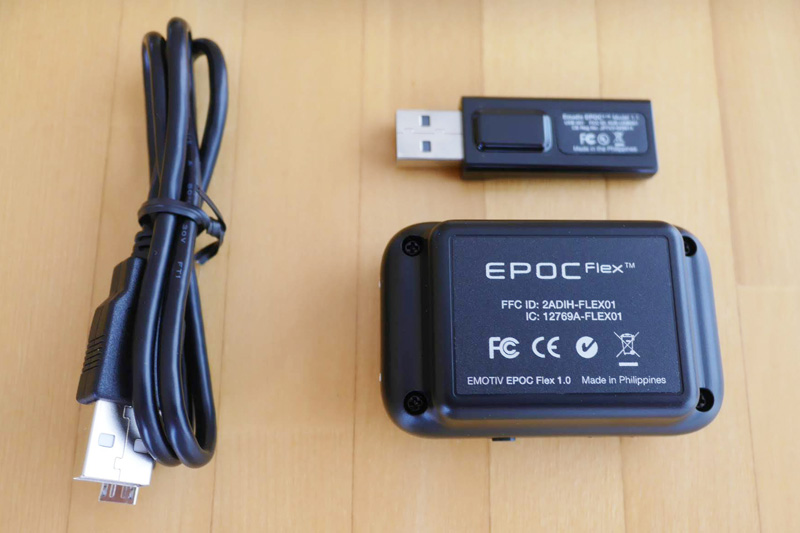

キット内容

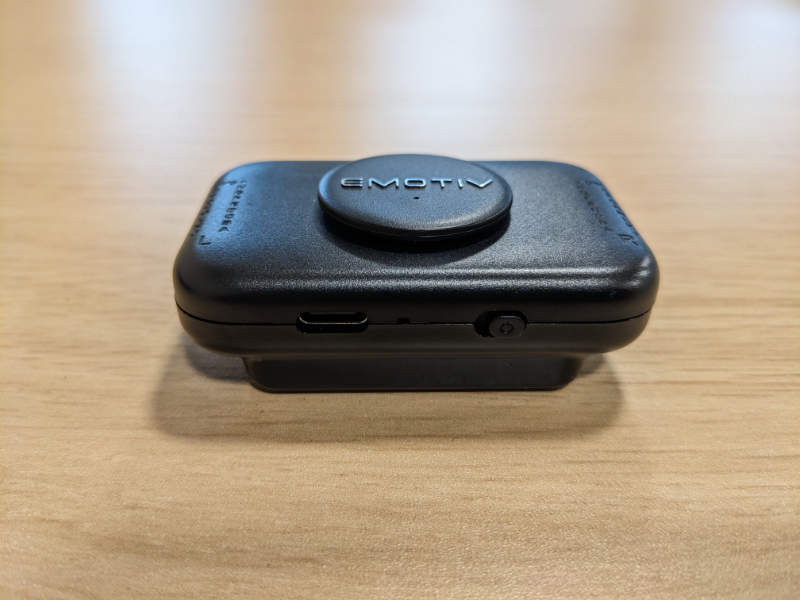

・EPOC Flex Control Box
- with USB charging cable

・Universal USB Receiver
- for wireless transmission (BTLE not supported)

・EPOC Flex Cap
- choose from 54cm, 56cm or 58cm ※ご希望のキャップサイズをお選びください

・EPOC Flex Saline Sensors
- 34 Saline soaked felt pads

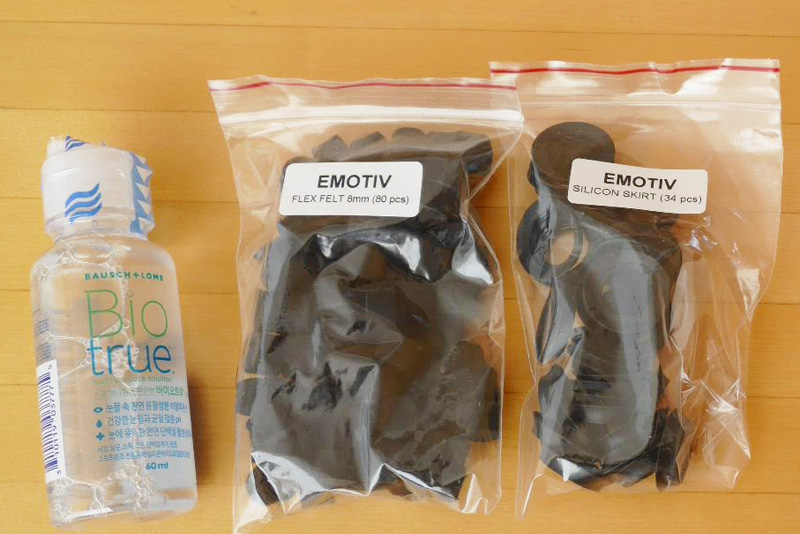

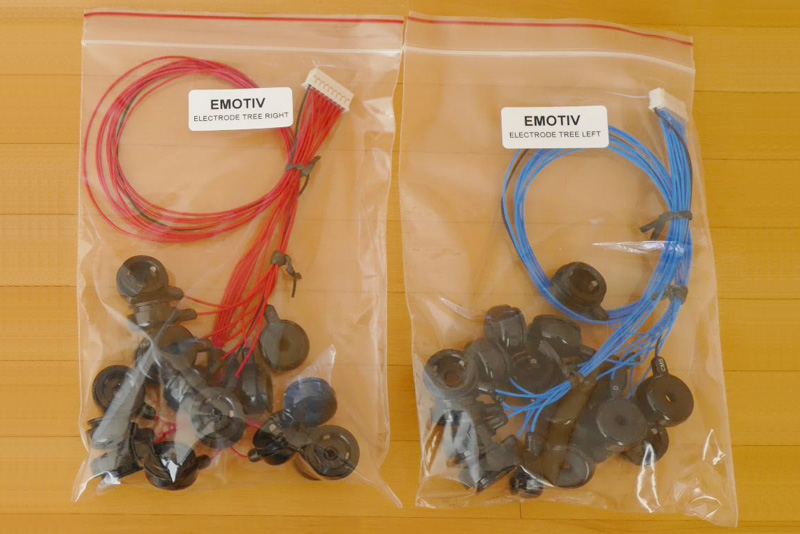

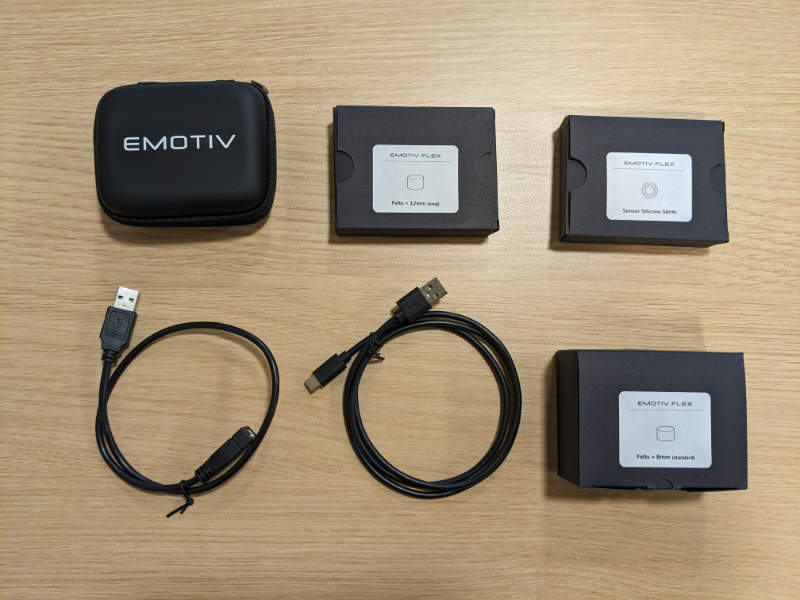

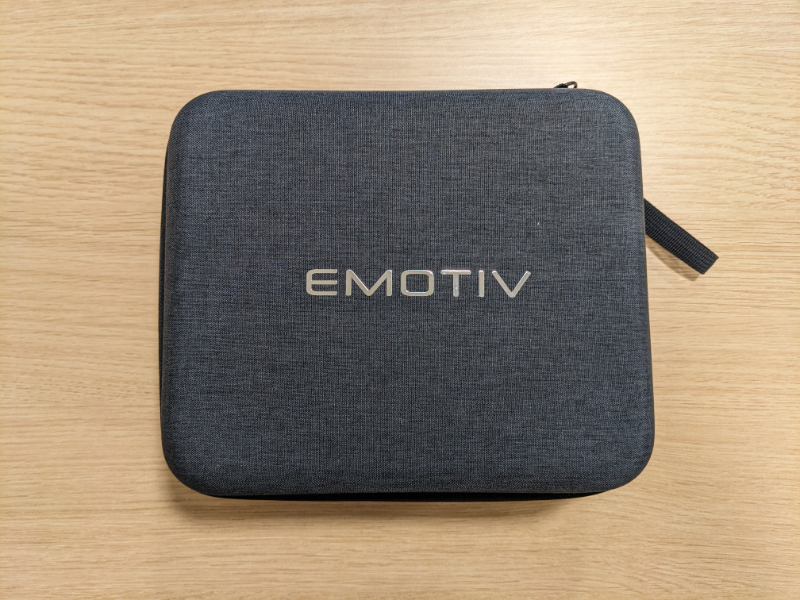

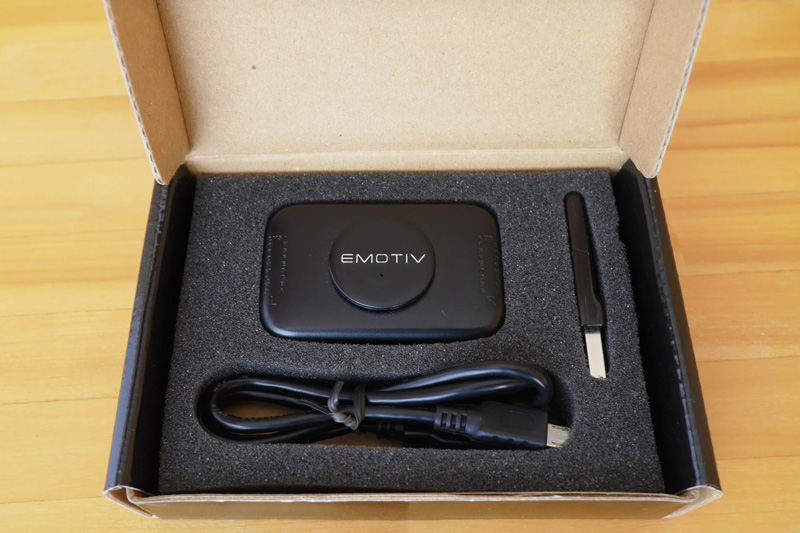

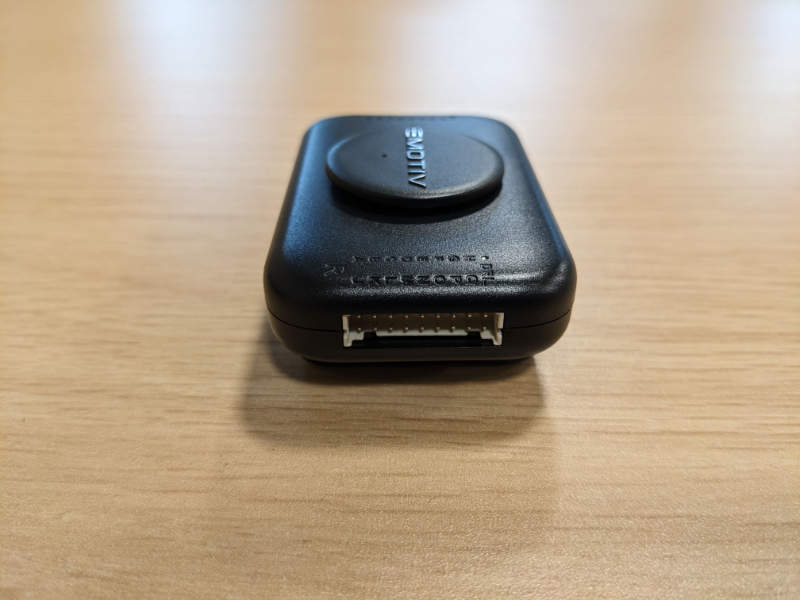

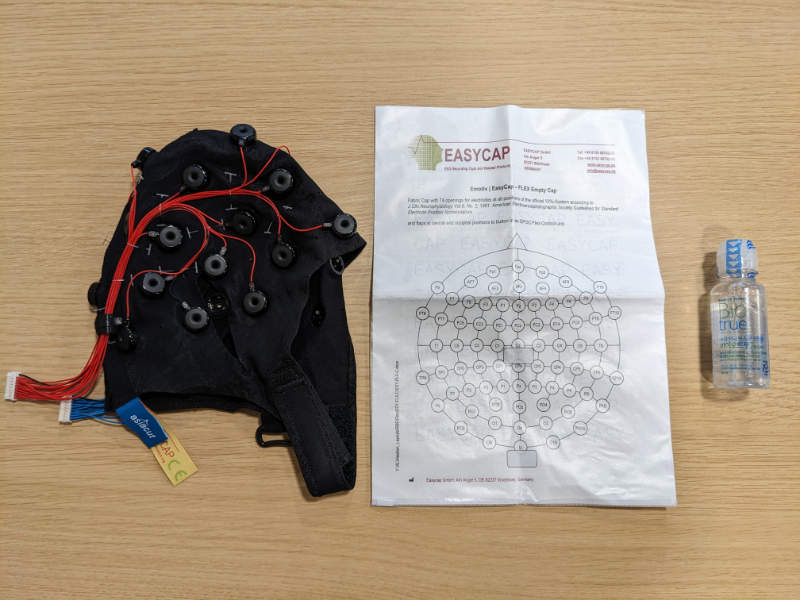

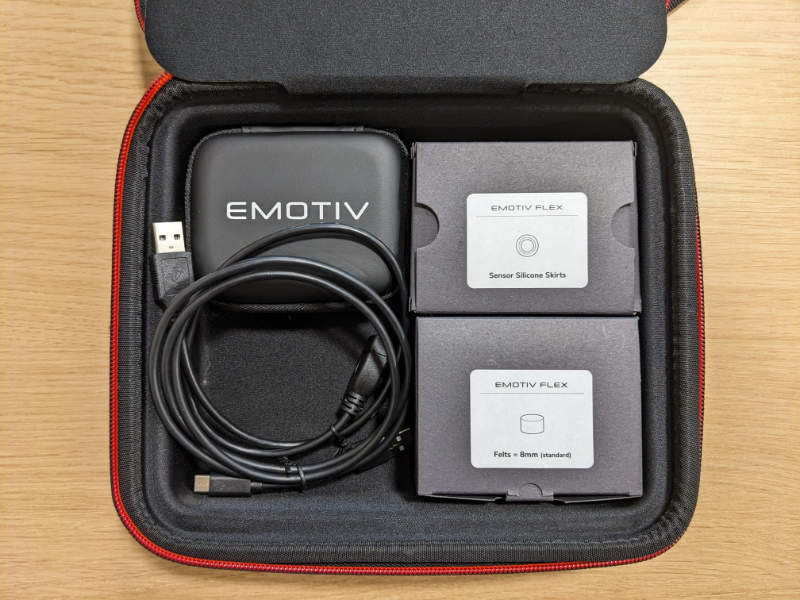

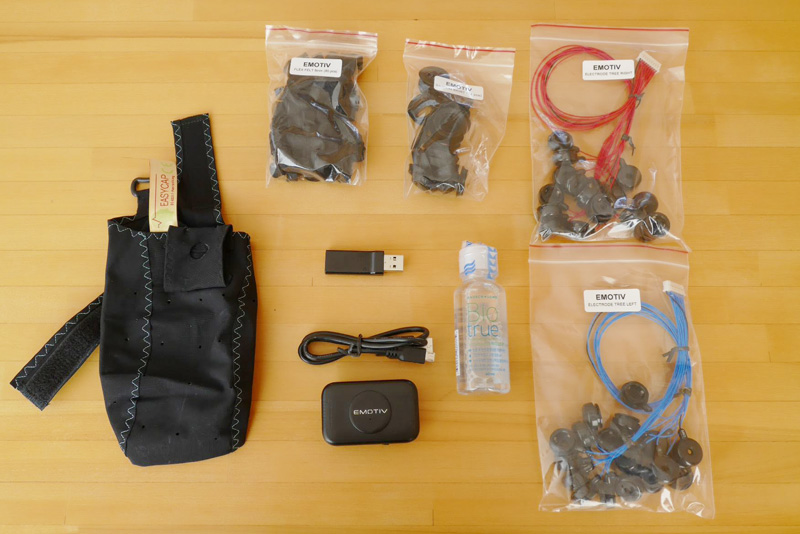

Saline Sensor Kit 写真 ※クリックで拡大します



-------------------------------------------------------

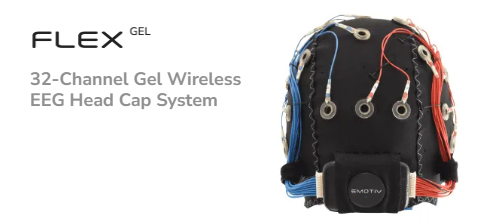

EMOTIV EPOC Flex - Gel Sensor Kit / メーカー詳細ページ
- より高品質な銀-塩化銀 ゲルセンサタイプ

キット内容

・EPOC Flex Control Box
- with USB charging cable

・Universal USB Receiver
- for wireless transmission (BTLE not supported)

・EPOC Flex Cap
- choose from 54cm, 56cm or 58cm ※ご希望のキャップサイズをお選びください

・EPOC Flex Gel Sensors
- 34 sintered silver-silver chloride gel sensors + compatible ear clips

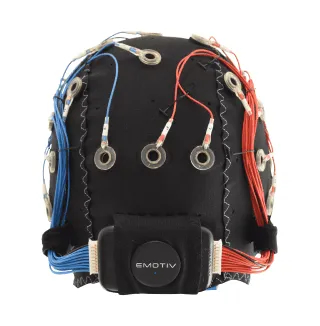

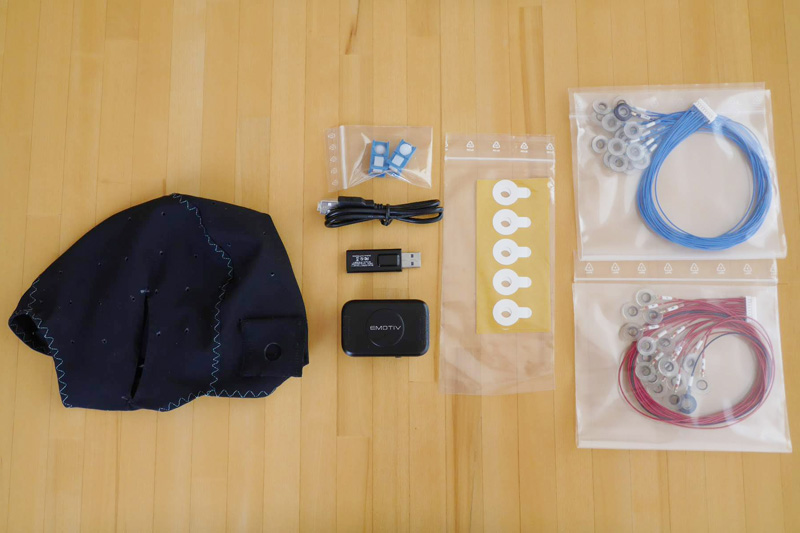

Gel Sensor Kit 写真 ※クリックで拡大します




【EMOTIV Flex 仕様】

EEG support:
・Up to 32 channels: configurable
・2 references: CMS/DRL configurable in any 10-20 location or on ears (compatible ear clips for sensors included)
・Available data: raw EEG and frequency band data. Requires PRO License for use.

EEG signals:
・Sampling method: Sequential sampling, single ADC
・Sampling rate: 1024 internal downsampled to 128 SPS.
・Resolution: 14 bits with 1 LSB = 0.51μV (16 bit ADC, 2 bits instrumental noise floor discarded), compressed maximum slew rate 32uV per sample.
・Bandwidth: 0.16 - 43Hz, digital notch filters at 50Hz and 60Hz
・Dynamic range (input referred): 8400 μV(pp)
・Coupling mode: AC coupled

EEG sensors:
- Electrode count: 32 recording electrodes, 2 reference electrodes
- Sensor material: sintered silver-silver chloride, compatible with gel
- Size: profile height - 3.5 mm; central opening diameter - 6 mm
- Wire length: 36 cm
- Manufacturer: EasyCap


EMOTIV Flexのご利用には、ソフトウェア EmotivPRO のご購入が必要です。
EmotivPRO (ソフトウェア)のページはこちら

より詳細な情報はこちらをご覧ください (メーカーWEBサイト)

-------------------------------------------------------


EMOTIV Extender - ニューロヘッドセットリサーチアクセサリー - / 詳細

EPOC+、Flex および Insight のモビリティとマーカーの精度をさらに高められる
外部ストレージ用のmicroSDカードを備えた絶縁型外部充電式バッテリーです。
ワイヤレス通信時のバッテリー消費を抑えるように設計されているため、
特に、消費電力の大きい256Hz/128Hzモーションデータを使用時に便利です。
場所を選ばず、長時間に渡って EEGデータをオフラインで記録、保存ができます

Extenderのご利用には、ソフトウェア EmotivPRO のご購入が必要です
EMOTIVPro (ソフトウェア)のページはこちら

【EMOTIV Extender 概要】

Specification:
・Connectivity: PC(USB-Mini B) / Headset(USB-A)
・Insulation: 2.5kV
・Trigger Input: Opto-isolated >2.5V pulse
・Trigger Minimum pulse: 100us
・Trigger Edge: Rising
・Battery Capacity.: LiPo battery 1850mAh
・Battery life (standby) 70% full :1 year
・Battery life (SD mode): 10 hours
・Battery life (tethered): Unlimited
・Battery life (Power Only): 7 hours
・Charging Time (1A): 2 hours
・SD Card Format: FAT32
・SD Card Max Capacity: 32GB
・SD Card use: 8KB/s

What's in the box:
・Extender
・micro USB cable
・Trigger Cable

Technical Spec:
External battery pack for extended headset use
2.5kV electrical isolation allowing direct USB data and power connection
Built-in SD card *
* Micro SDカードは含まれておりません。別途ご用意ください。

Operating Modes:
・Charge Extender from USB port
・Charge EPOC+/Insight from PC or power pack during use via the isolated 5V power circuit
・Direct USB connection to PC via isolated 5V power and USB data links
・Operate EPOC+/Insight for extended periods using charge from Extender battery
・Record data directly to removable SD card during use
・Insert hardware-generated event marker flags directly into EEG data stream using 2.5kV-isolated optocoupler port

Compatibility:
・EPOC+/Insight. Not compatible with original EPOC model
・Windows or Mac Operating Systems for data download

Color:(選択してください)
・Classic White
・Stealth Black



EMOTIV 脳波計測デバイス4種 (Insight / EPOC+ / EPOC Flex / MN8) メーカーWEB比較表ページ
