pmd flexx2 DevKit / CamBoard pico monstar

ToF方式 デプスカメラ
Time-of-Flight (ToF)方式のコンパクトな3Dカメラ。
Windows, Linux, MacOS, Android…と、さまざまなOSに対応しており、USB接続で簡単に各種デバイスへ取り付けが可能です。
製品名のとおり、対応OS、測定範囲、フレームレートなどをflexibleに選択できることが大きな特徴です。3Dポイントクラウドの生成、ピクセルごとの深度データ表示なども可能です。

【製品の特徴】
-------------------------------------

pmd flexx2 DevKit :
(2022年1月リリースされたCamBoard pico flexxの後継)
最大4mまでの測定範囲、3Dフレームレートを 5fps~最大60fpsまで調整可能

CamBoard pico monstar :
最大6mまでの測定範囲、フレームレートを 5fps ~ 60fps まで調整可能
※本製品は販売終了、在庫限りとなりました

CamBoard pico flexx :
最大4mまでの測定範囲、フレームレートを 5fps ~ 45fps まで調整可能
※本製品は販売終了となりました

-------------------------------------

O3R認識プラットフォームにつきましては
お取り扱い可否を確認いたしますのでモデル名をお知らせください。
・ifm O3R 2D / 3D head [3D camera O3R225]
・ifm OVP vision processing unit [VPU OVP800]



3Dカメラ 取扱一覧


メーカー
pmdtechnologies ag
https://pmdtec.com/en/

取り扱い商品の一例

商品名 納品方法 納期 価格
pmd flexx2 DevKit 弊社より配送 在庫あり、即納です お問い合わせください
pmd flexx2 OEM module 弊社より配送 ご予約受付中 (※2022年2月末~3月上旬) お問い合わせください
CamBoard pico monstar 弊社より配送 在庫あり、即納です お問い合わせください
CamBoard pico flexx 別途※ 販売終了

今すぐお見積り

ご希望の商品にチェックを入れてボタンをクリックすることで、該当商品をお見積もりフォームへ追加できます。納品方法についてはこちらをご覧ください。

商品説明


【取り扱い製品の一例】


・pmd flexx2 DevKit / 詳細(メーカーページ)

pmd flexx2 DevKitは、解像度38k、56x44度の視野角をもつ
Time-of-Flight(ToF)方式の3Dデプスセンシング開発キットです。
プロトタイピング、研究開発、大量生産といった用途に合わせ
バージョン(ケースあり、ケースなしのいずれか)を選択可能です。

Version
- DevKit: Encased, CE Certified, Class 1 Laser Product
- OEM: No casing, no CE Certification, not laser certified(must be done by end-user)

【主な仕様】

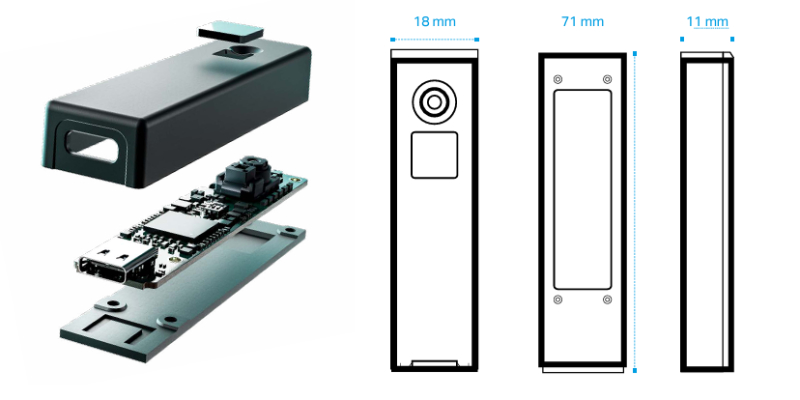

Dimensions: 71.9 x 19.2 x 10.6 mm
ToF-sensor: IRS2381C Infineon REAL3 3D Image Sensor
Measurementrange: 0.1 m - 4 m
Framerate: Up to 60fps (3D frames)
Illumination: 940 nm, VCSEL, Laser Class 1
Software:
Royale SDK C/C++ based, supports Matlab, DotNet, CAPI, OpenCV, OpenNI2, ROS 1+2
Resolution: 224 x 171 (38k) px
Viewing angle (H x V): 56°x 44°FOV
Interface: USB3 Type-C
Accuracy:
<= 1% of distance (0.5 -4m @ 5fps) / <= 2% of distance (0.1 -1m @ 45fps)

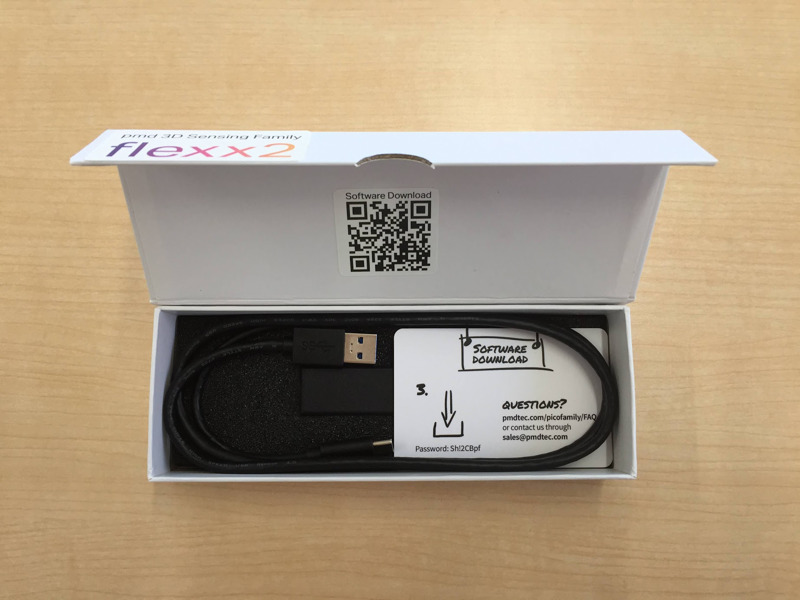

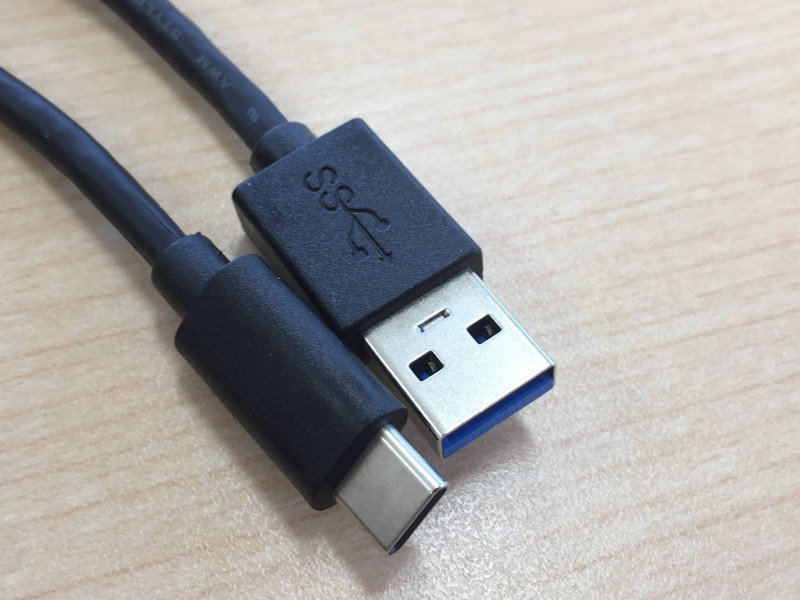

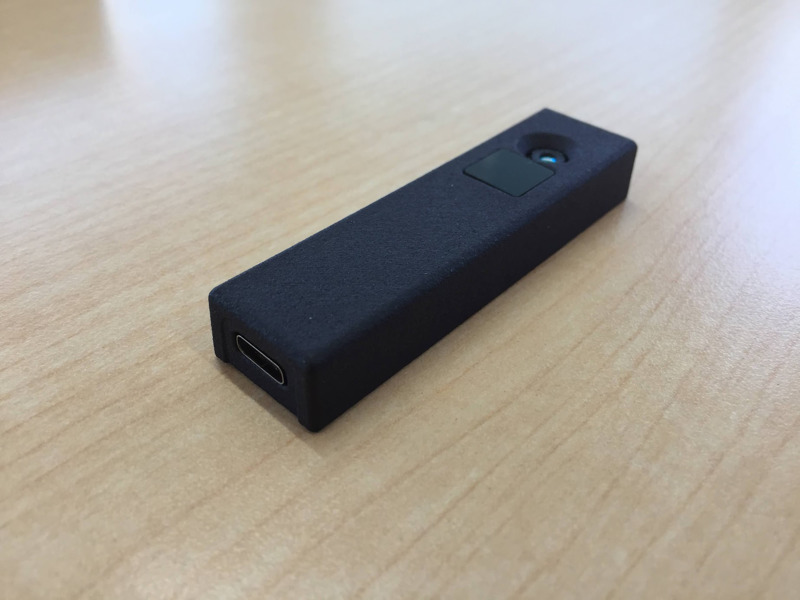

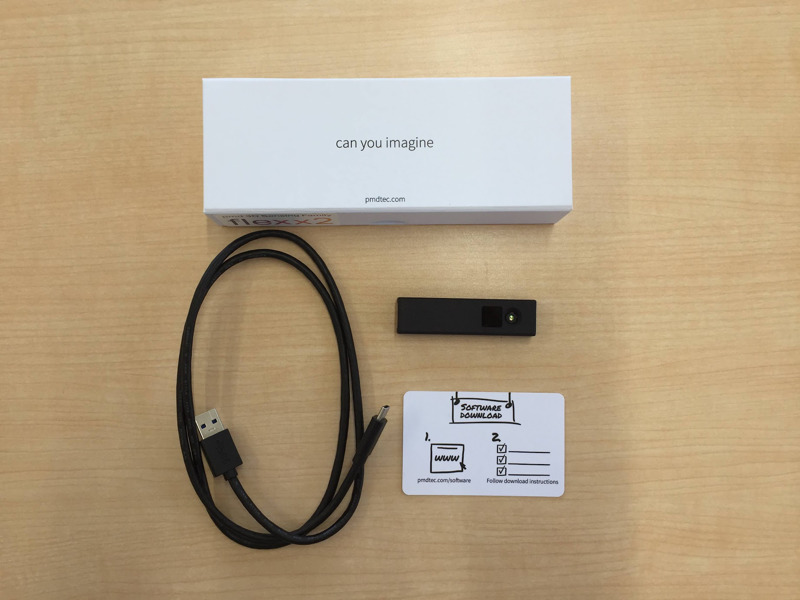

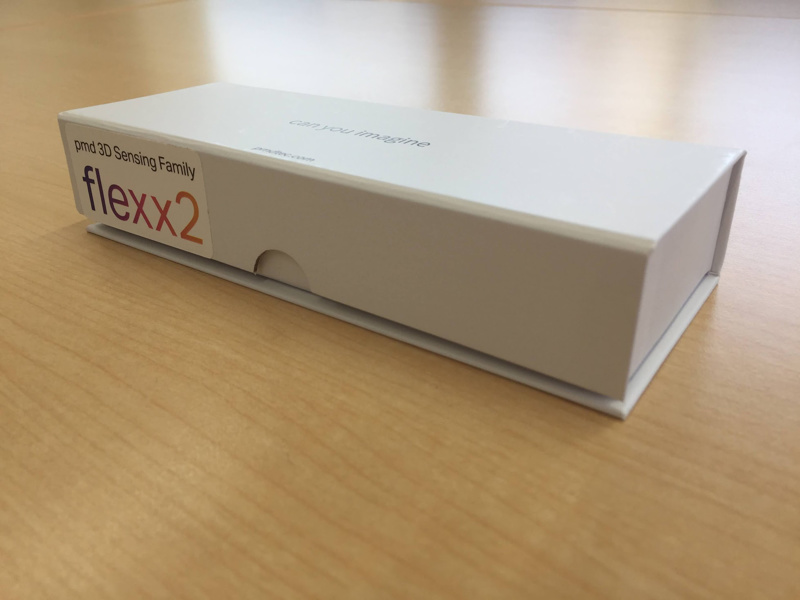

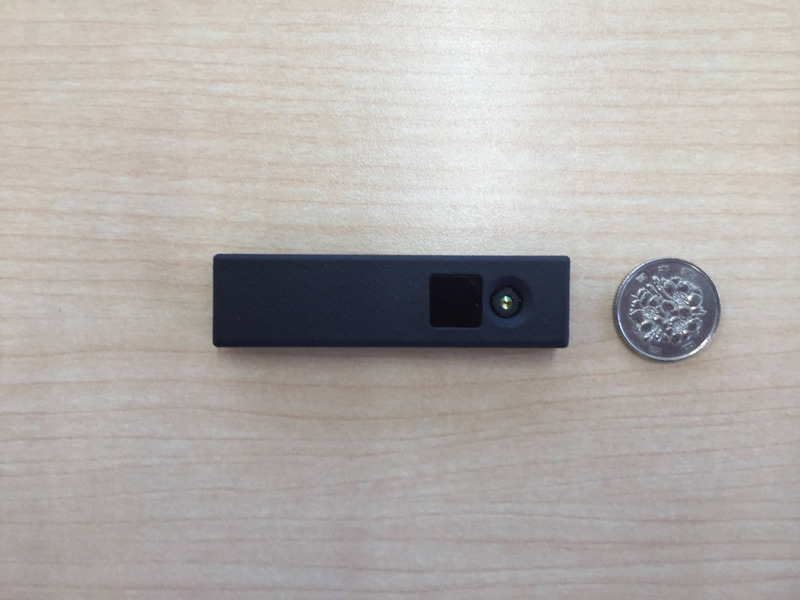

pmd flexx2 DevKit 外観写真 (クリックで拡大します)






・CamBoard pico monstar ※生産終了/在庫限り

CamBoard pico monsterは、pico flexxよりも広い視野角(100度)、
広測定範囲(0.5m - 6m)のTime-of-Flight (ToF)方式の3Dカメラです。

【主な仕様】
Dimensions: 62 x 66 x 29(mm)
Weight: 142g
ToF-sensor: IRS1125C Infineon REAL3 3D Image Sensor IC based on pmd intelligence
Measurement range: 0.5 - 6 m
Framerate: Up to 60fps(3D frames), 9 pre-defined operation modes
Acquisition time per frame: 5 ms typ. @ 60 fps
Power consumption: USB3.0 compliant, 4.5 W max. forIRS chip, illumination and USB3.0
Illumination: 4x VCSEL, 850nm, Laser Class 1
Software:
Royale SDK (C/C++ based, supports Matlab, DotNet, CAPI, OpenCV, OpenNI2, ROS)
Resolution: 352 x 287 (100k) px
Viewing angle (H x V): 100°x 85°
Interface: USB 3.0 (data & power)
Depth resolution :
<= 1% of distance (1 -6 m @ 5fps) / <= 1 % of distance (0.5 -2 m @ 60 fps)
Operating system: Windows 7/8/10, Linux/ARM, Ubuntu Linux 16.04 + Qt5.5, macOS

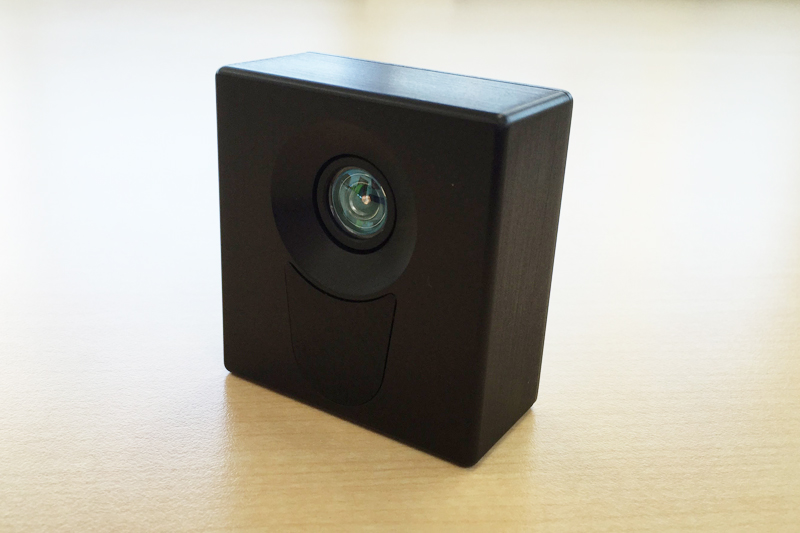

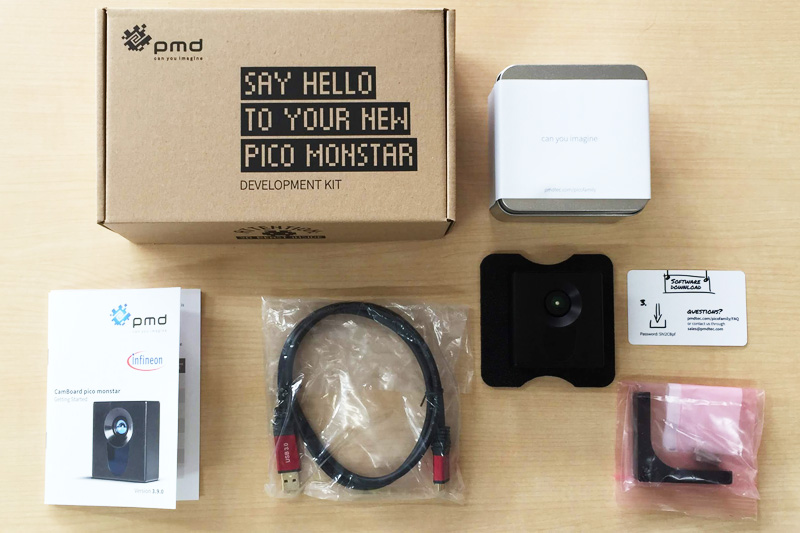

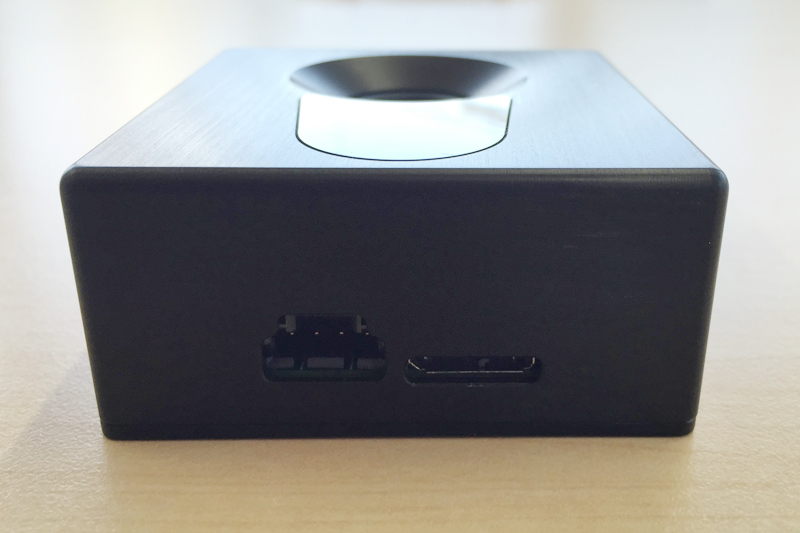

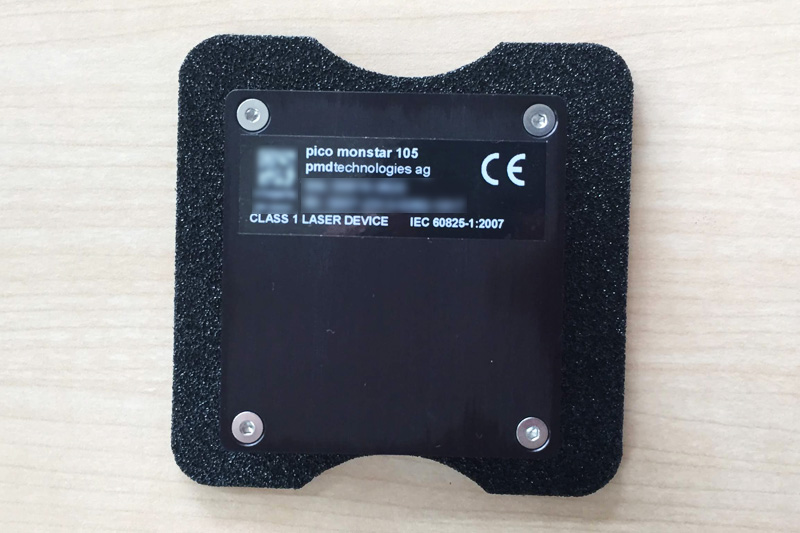

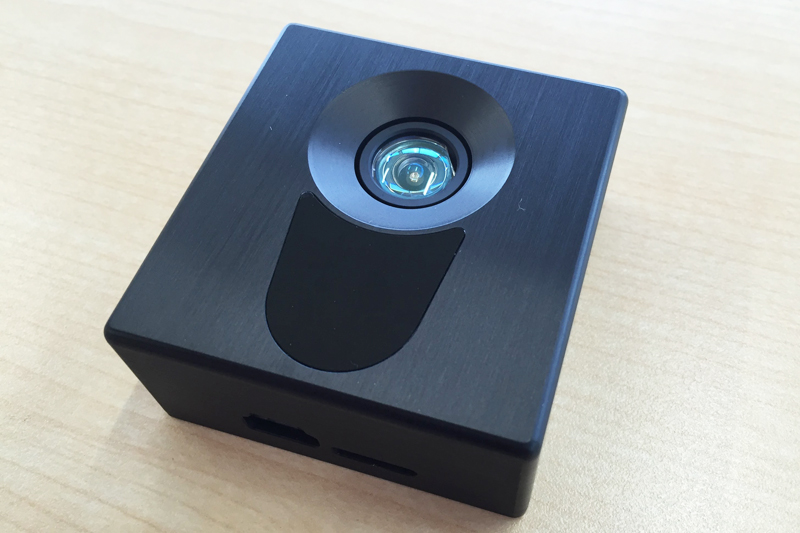

CamBoard pico monstar 外観写真 (クリックで拡大します)




メーカーページのFAQに詳細な情報が掲載されております。


・CamBoard pico flexx ※生産終了/完売

CamBoard pico flexxは、わずか8gと軽量、かつ、コンパクト、低消費電力、
視野角60度のTime-of-Flight (ToF)方式の3Dカメラです。


【主な仕様】
Dimensions: 68mm x 17mm x 7.35mm
Weight: 8g
ToF-sensor: IRS1145C Infineon REAL3 3D Image Sensor IC based on pmd intelligence
Measurementrange: 0.1 - 4 m
Framerate: Up to 45fps (3D frames); 8 pre-defined operation mode
Acquisition time per frame: 4.8 ms typ. @ 45 fps/ 30 ms typ. @ 5 fps
Power consumption: USB2.0 compliant, average300mW forIRS chip and illumination
Illumination: 850 nm, VCSEL, Laser Class 1
Software:
Royale SDK (C/C++ based, supports Matlab, DotNet, CAPI, OpenCV, OpenNI2, ROS)
Resolution: 224 x 171 (38k) px
Viewing angle (H x V): 62°x 45°
Interface : USB 2.0 / USB3.0 (data & power)
Depth resolution:
<= 1% of distance (0.5 -4m @ 5fps) / <= 2% of distance (0.1 -1m @ 45fps)
Operating system:
Windows 7/8/10, Linux/ARM, Ubuntu Linux 16.04 + Qt5.5, macOS, Android/ARM

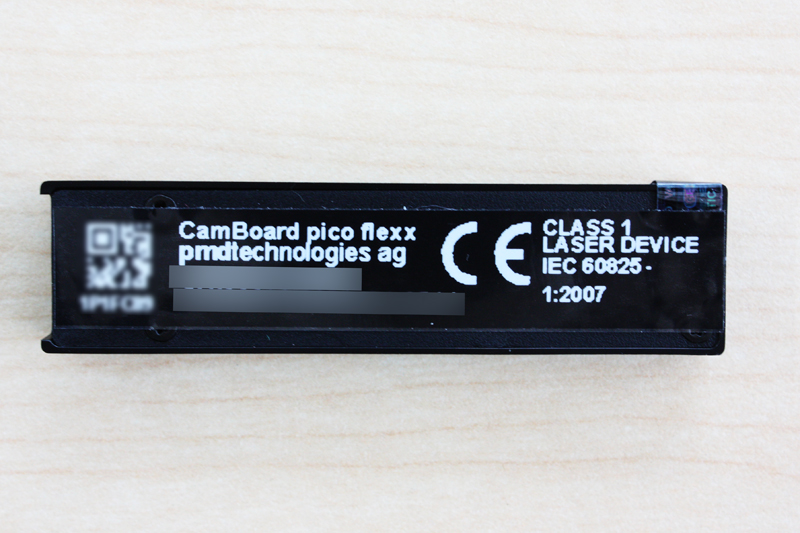

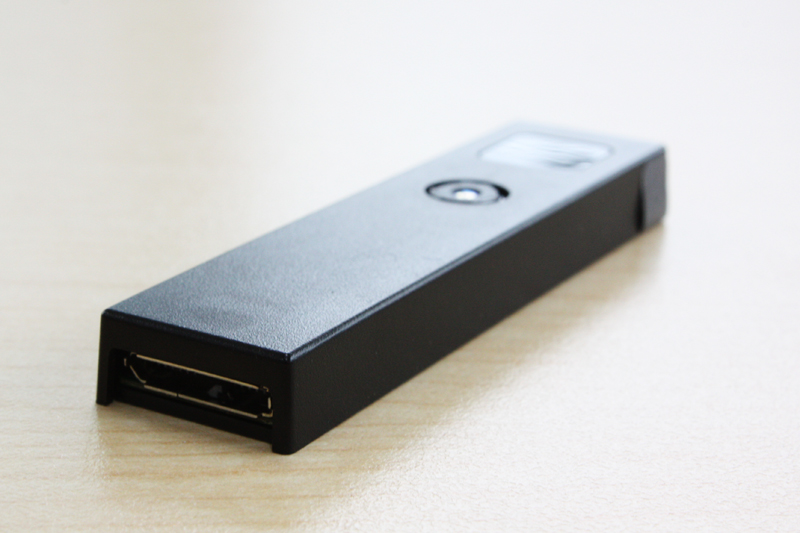

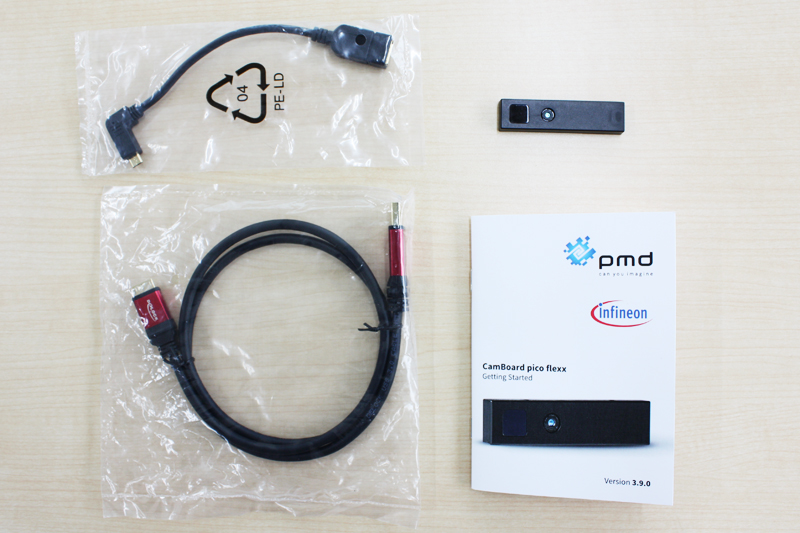

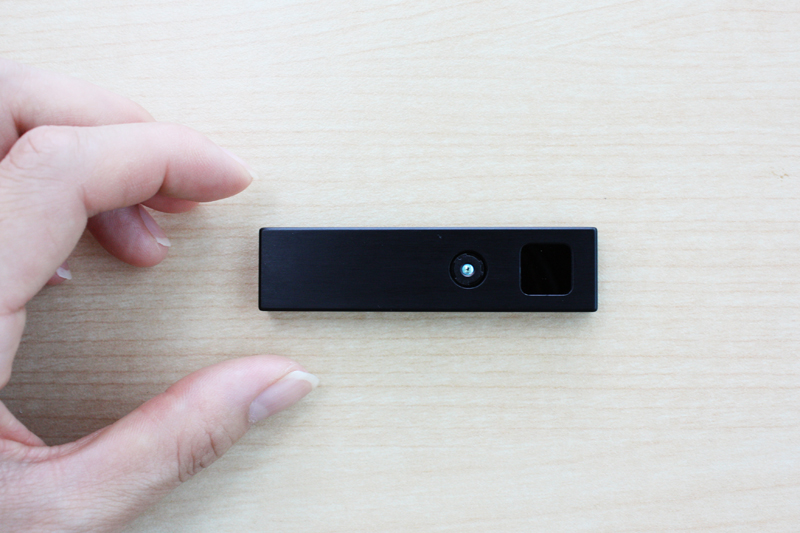

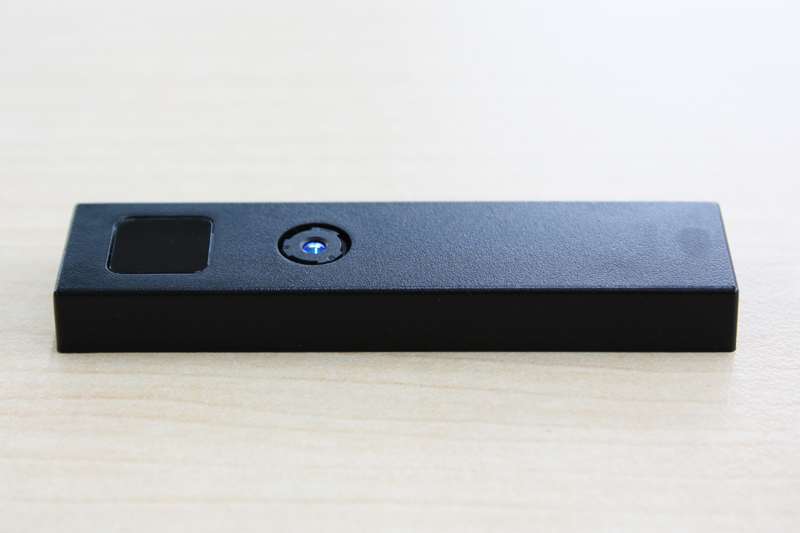

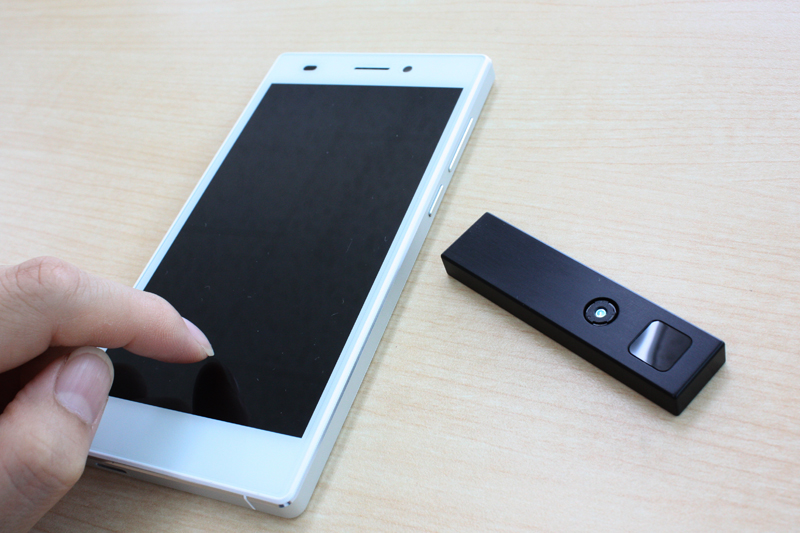

CamBoard pico flexx 外観写真 (クリックで拡大します)
